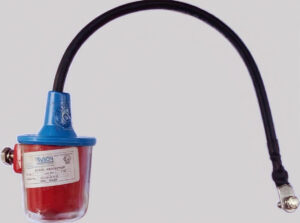

Surge Diverter for Cathodic Protection

Our Surge Diverters are specially designed to protect cathodic protection (CP) systems such as pipelines, storage tanks, and rectifiers against lightning surges, AC faults, and switching disturbances.

Installed between the protected structure and the earthing system, the surge diverter provides a safe discharge path for high voltages, without interfering with the normal CP operation.

🔹 Key Features

  • Provides reliable protection from lightning and AC faults.

  • Fast response time (<25 ns) ensures immediate surge diversion.

  • Does not affect normal cathodic protection current flow.

  • Heavy-duty MOV/GDT technology for long life.

  • Weatherproof & maintenance-free design.



Technical Specifications

Parameter Value
Rated Voltage (DC/AC) 250 V – 1000 V
Continuous Operating Voltage 600 V – 700 V
Nominal Discharge Current 10 – 20 kA (8/20 μs waveform)
Maximum Discharge Current 40 – 65 kA (8/20 μs waveform)
Protection Level (Up) ≤ 2.5 kV
Response Time < 25 ns
Technology MOV (Metal Oxide Varistor) / GDT based
Enclosure Protection IP65 / IP67, UV & weather resistant
Standards IEC 61643-11, IEEE C62.41, NACE SP0177

🔹 Applications

  • Pipeline Cathodic Protection Systems

  • Tank Bottom Protection

  • Rectifier Stations

  • Test Stations and Junction Boxes

🔹 Advantages

  • Enhances safety of CP system components.

  • Extends life of rectifiers and anodes.

  • Protects infrastructure from costly lightning and AC damage.

  • Easy installation & long service life.
